TECHNICAL DATA

Capacity: 3 passengers
Lenght: 8.54 m (28 ft 0 in)
Wingspan: 13.96 m (45 ft 10 in)
Height: 2.72 m (8 ft 11 in)
Wing area: 24.30 m2 (261.6 sq ft)
Aspect ratio: 8.07:1
Airfoil: NACA 4412
Empty weight: 968 kg (2,134 lb)
Gross weight: 1,460 kg (3,219 lb)
Max takeoff weight: 1,560 kg (3,439 lb)
Fuel capacity: 200 L (53 US gal, 44 impgal)
Powerplant: 1x Praga Doris M 208-B
air-cooled flat-six engine, 140kw (190hp)
Propellers: 2-bladed Type V-411 wooden
controllable pitch, 2.70 m (8 ft 10 in) diameter

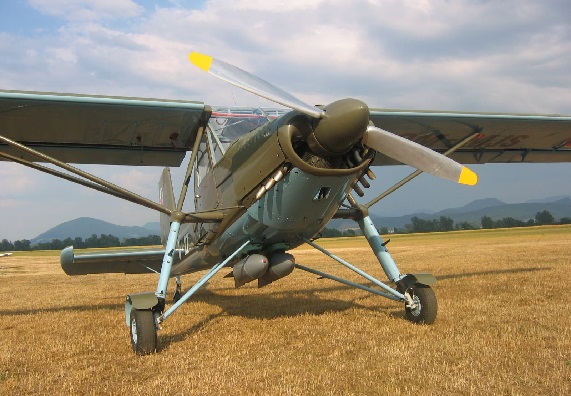

PERFORMANCE

Maximum speed: 193 km/h (120 mph, 104 kn)
Cruise speed: 175 km/h (109 mph, 94 kn)
at sea level
Stall speed: 52 km/h (32 mph, 28 kn)
Range: 720 km ( 450mi, 390nmi)
at 1,000 m (3,300 ft)
Service seiling: 4,200 m (13,800 ft)
Time to altitude:
4.3 min to 1,000 m (3,300 ft)
17.5 min to 3,000 m (9,800 ft)
Takeoff run to 15 m (50 ft):
240 m (787 ft) on grass
Landing run from 15 m (50 ft):
195 m (640 ft)

FLIGHT DATA

DRAGON-BODY:
Air raid after overhaul 684 hours
Takeoff 2.609
Air raid total 3.090 hours
Rzurz 516 hours to overhaul
ENGINE:
Air raid after overhaul 625 hours
Air raid total 1.482 hours
Rezurz 25 hours to IV. overhaul
PROPELLER:
Air raid after overhaul 484 hours
Air raid total 2.225 hours
Rezurz 16 hours to IV. overhaul

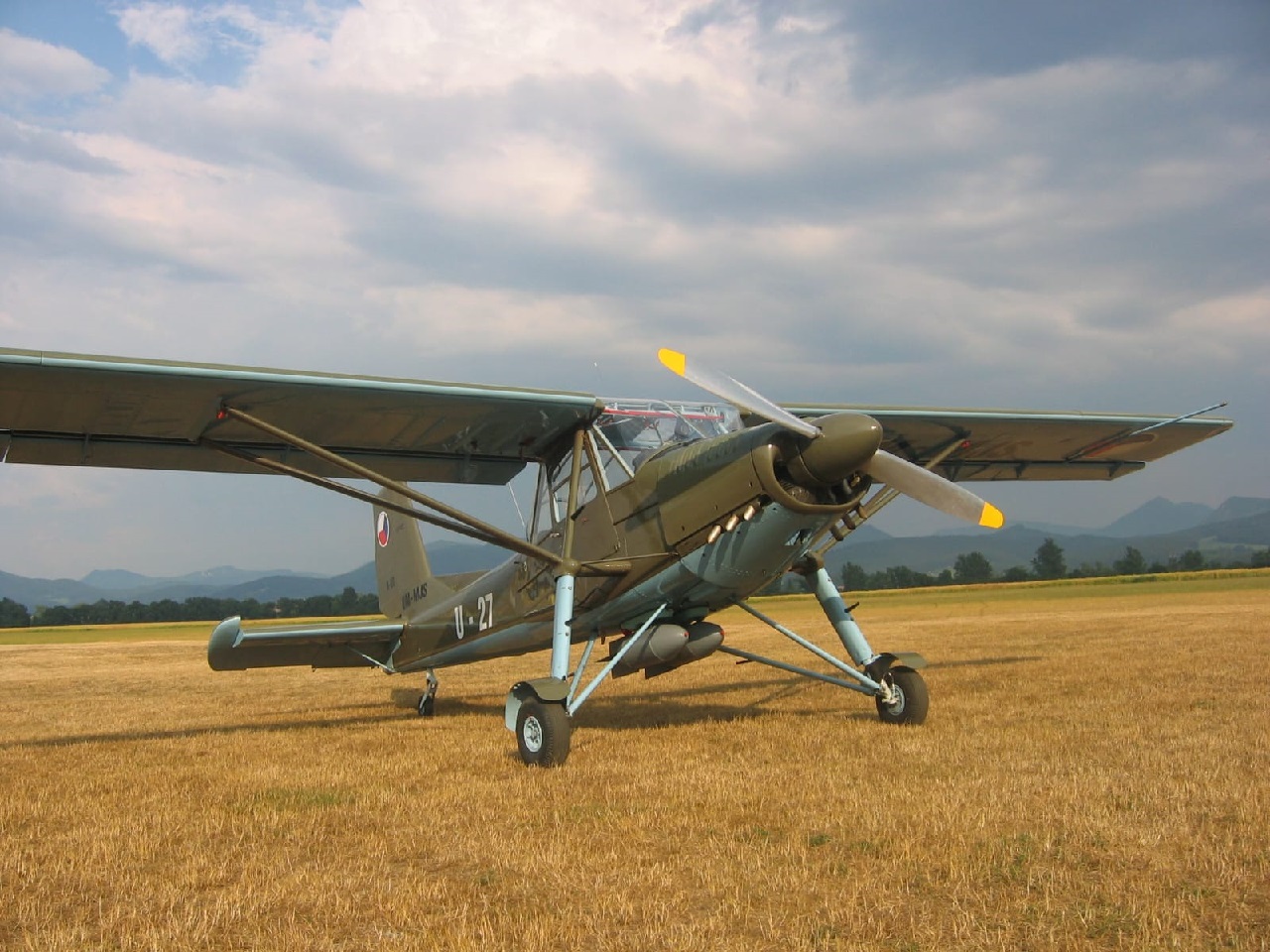

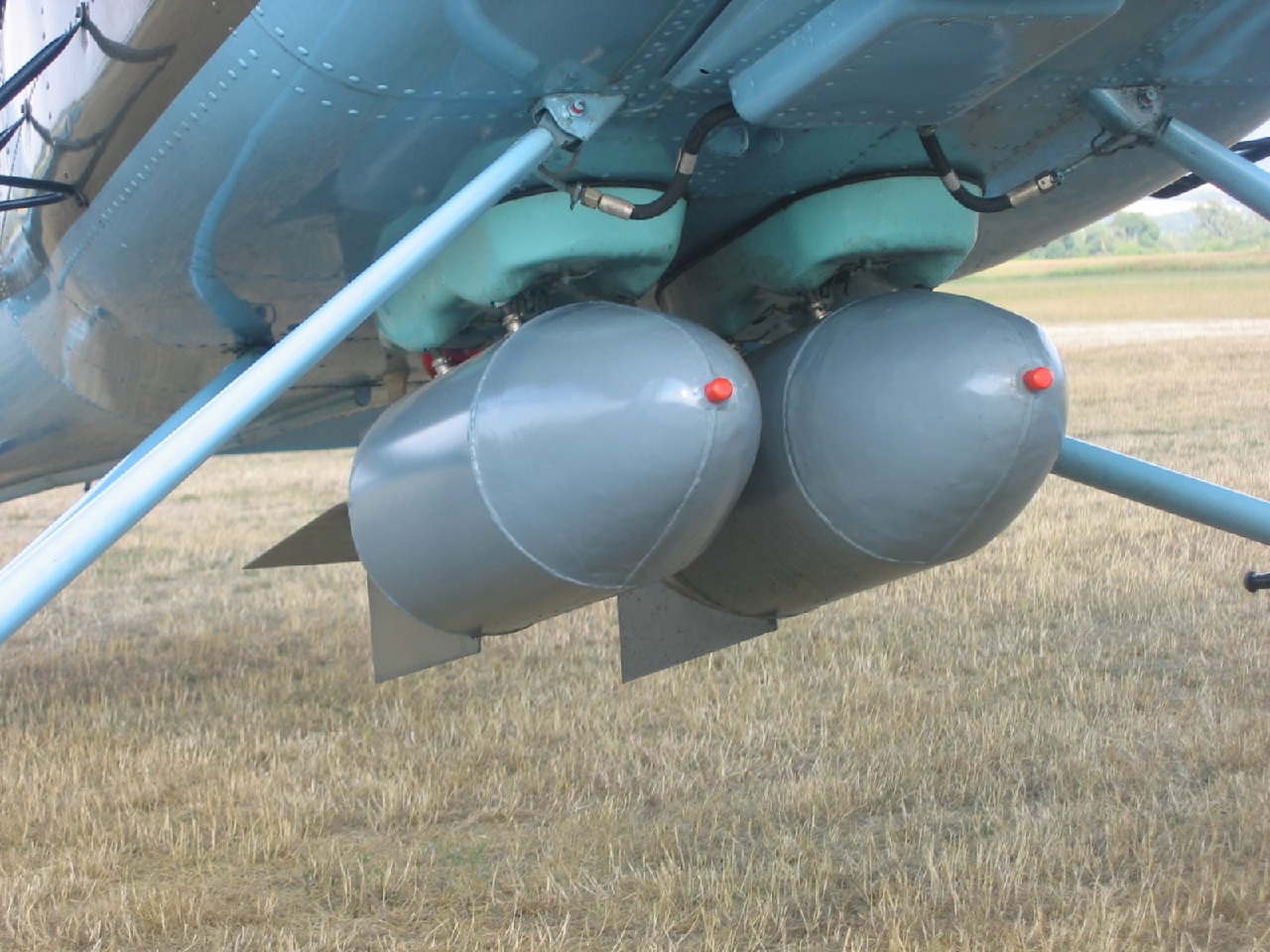

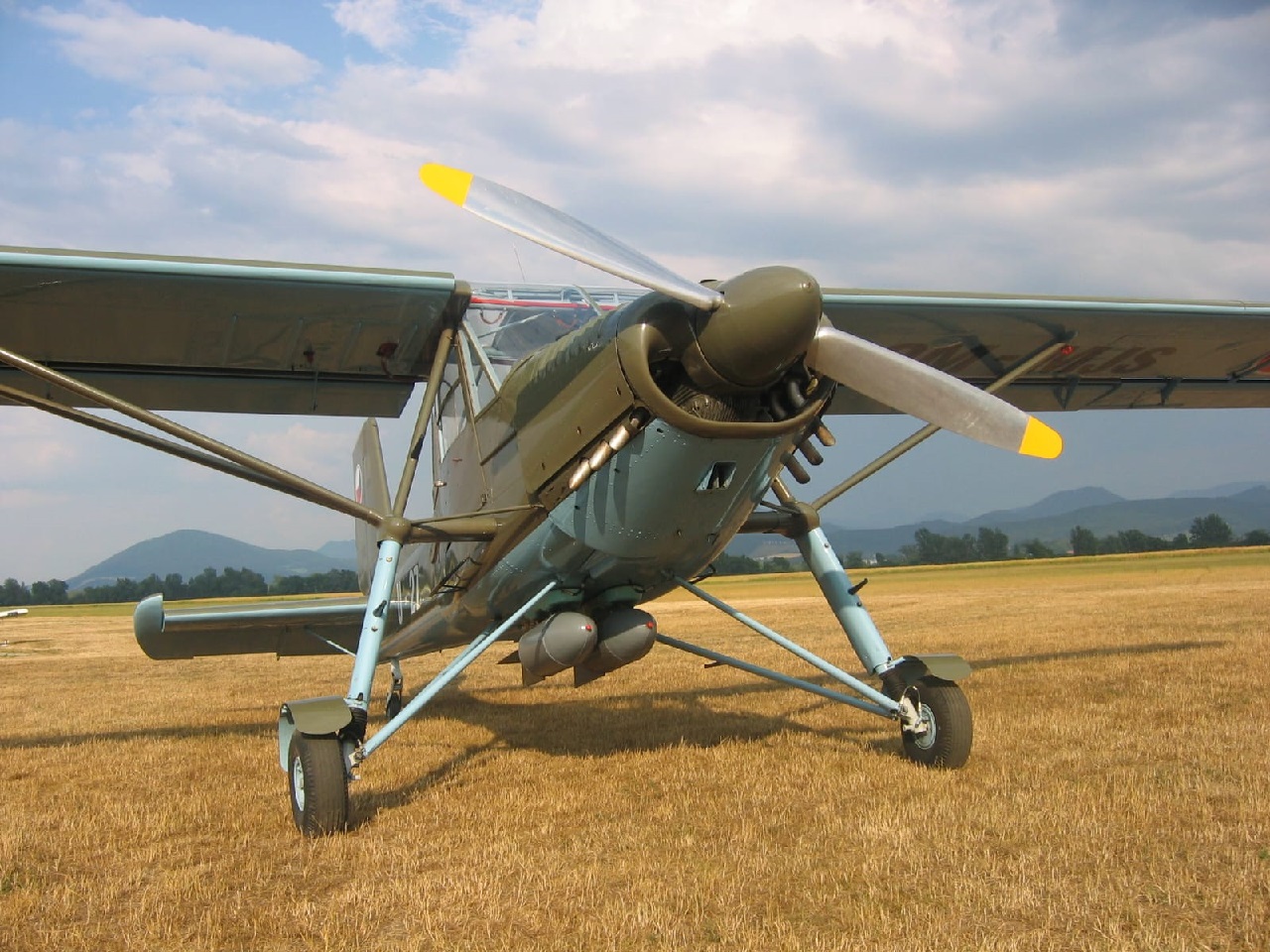

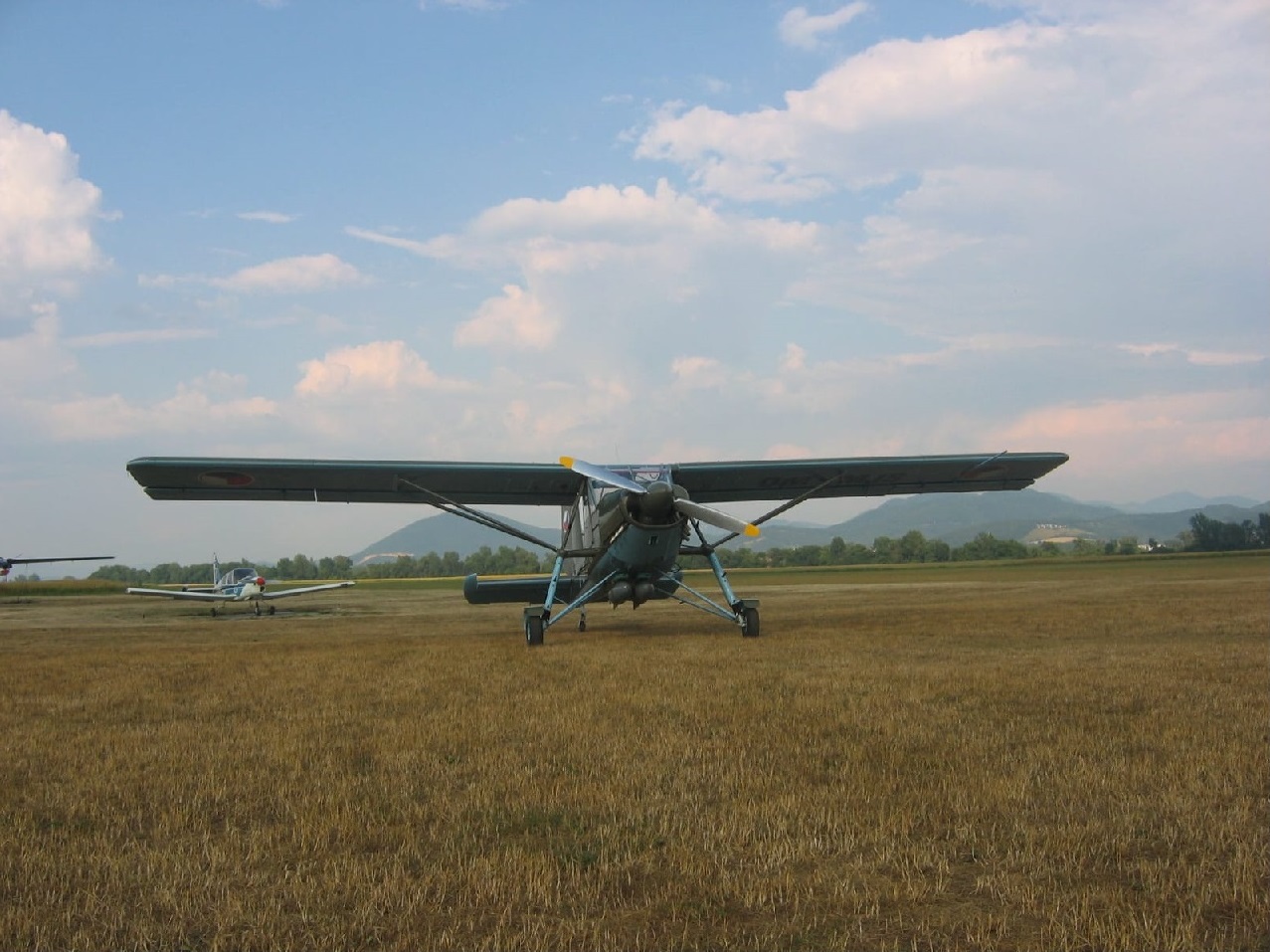

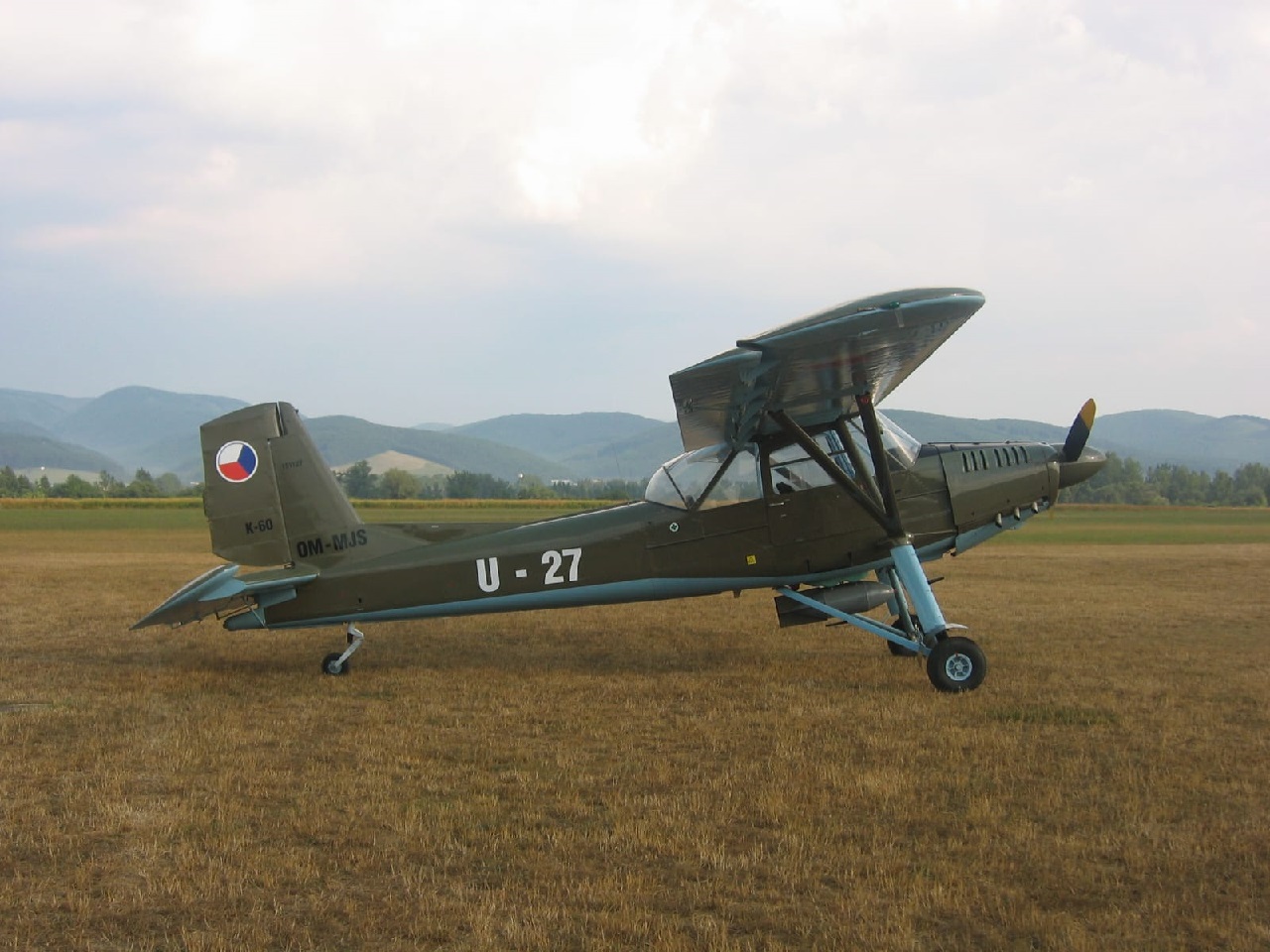

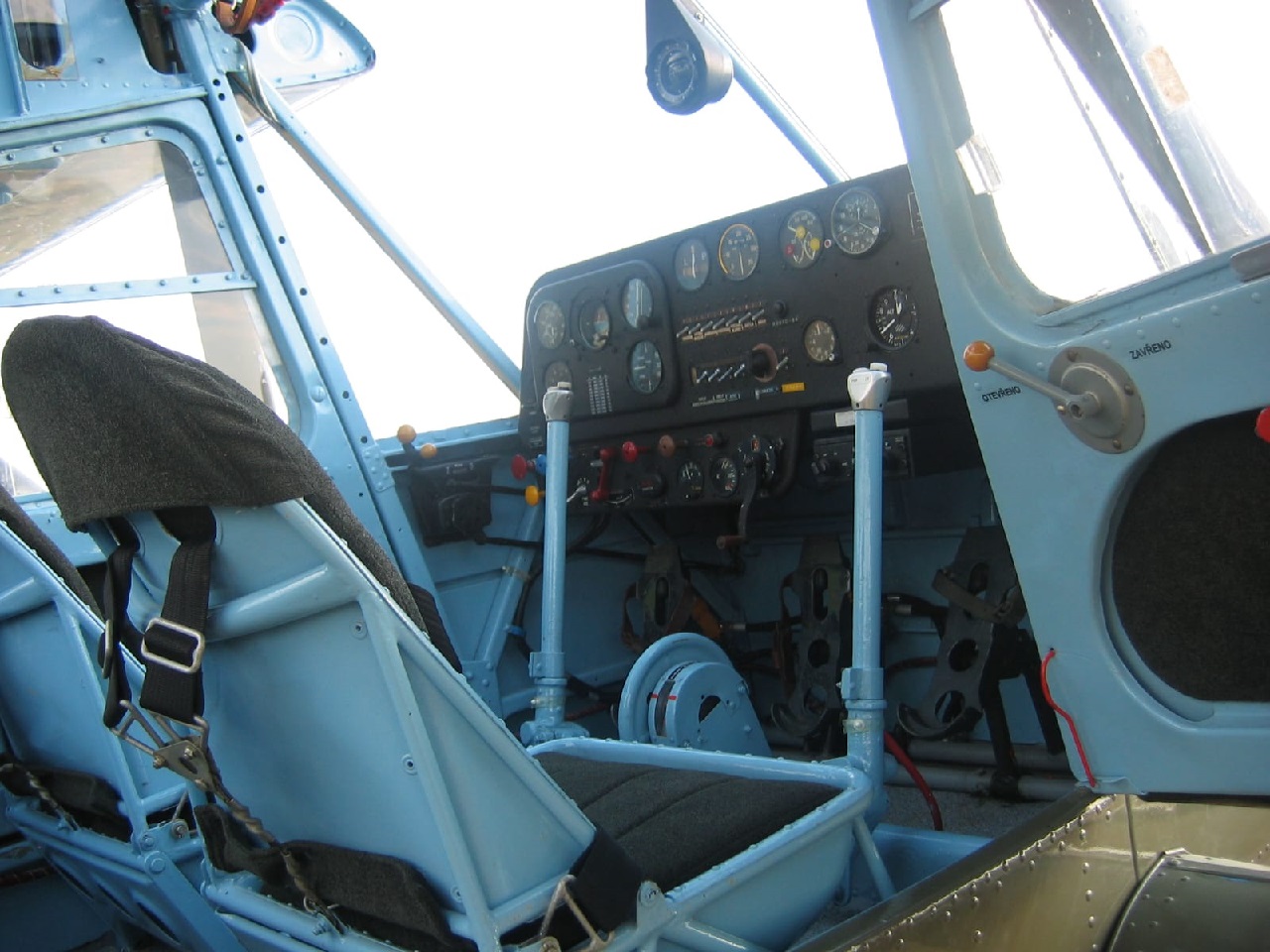

FOTOGALERY

AIRPLANE WITH A STORY

During World War II, a unique military operation took place,
leading to the liberation of the Italian dictator from prison in the Hotel Campo Imperátore on Gran Sasso.
Otto Skorzeny and his unit liberated Mussolini. Without a single shot being fired,
Mussolini was kidnapped on such a plane /September 12, 1943/

PRICE

For price, please contact the aircraft owner at: xxxxxxx xxx xx

000.000 Euro

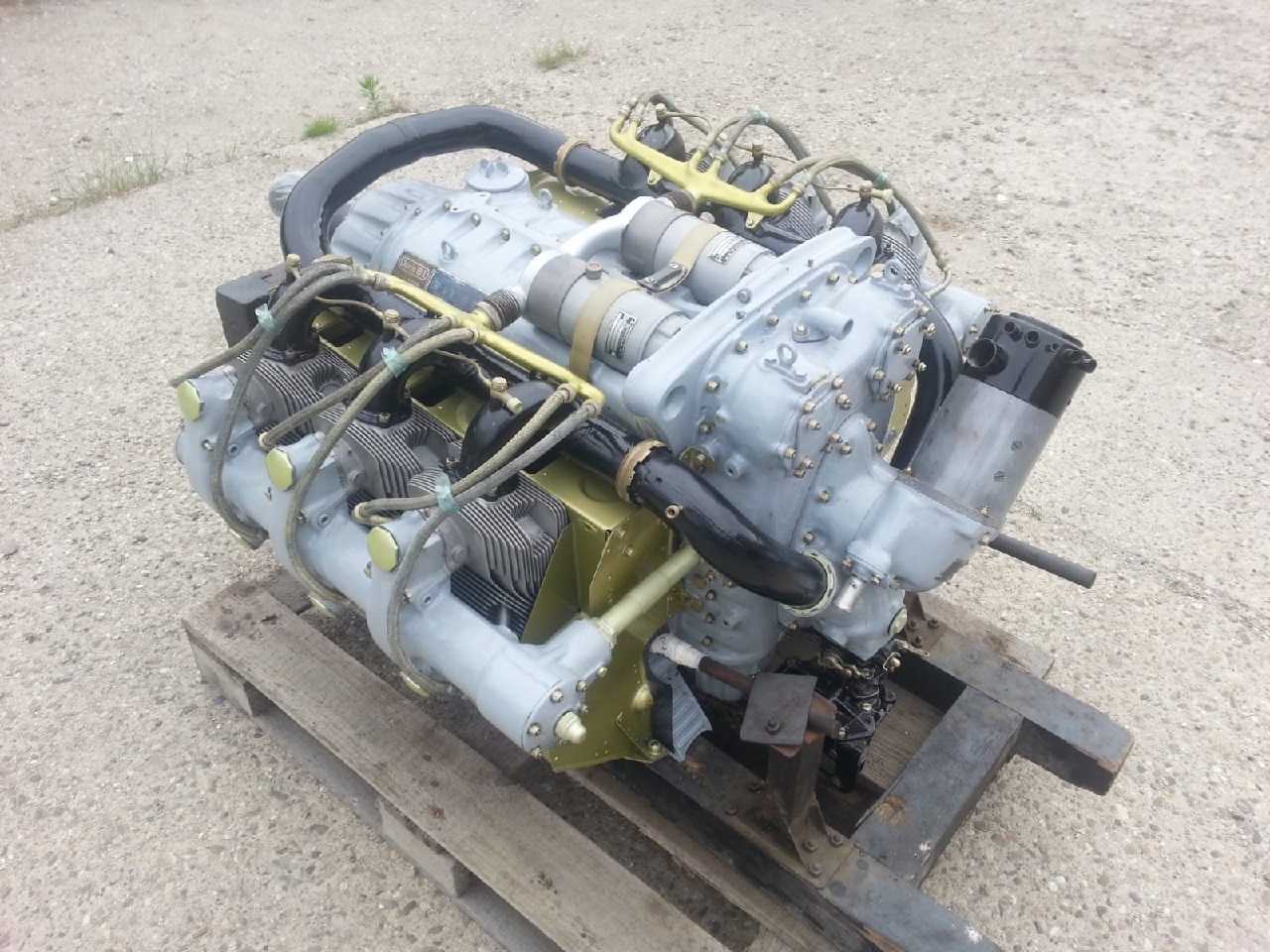

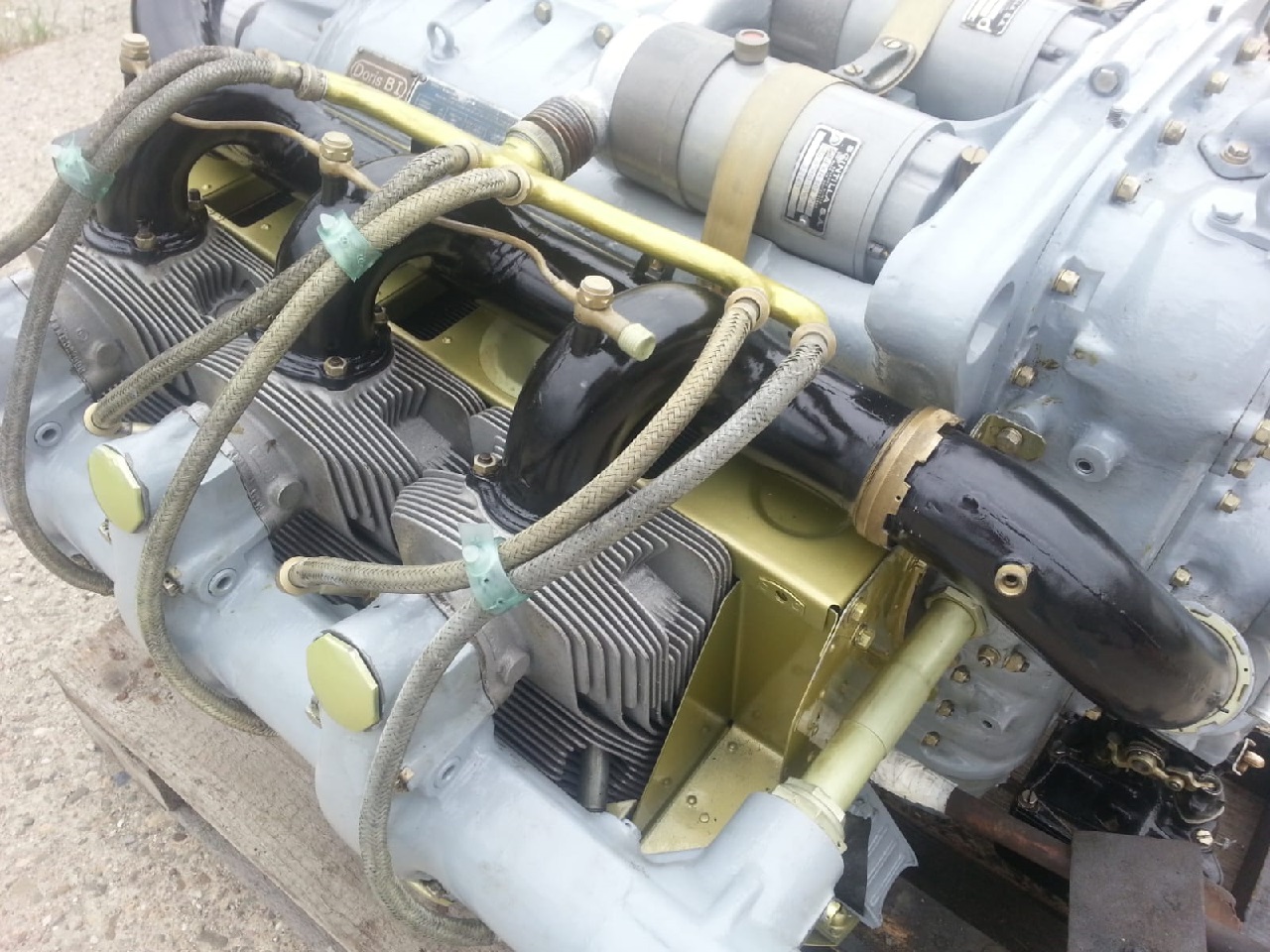

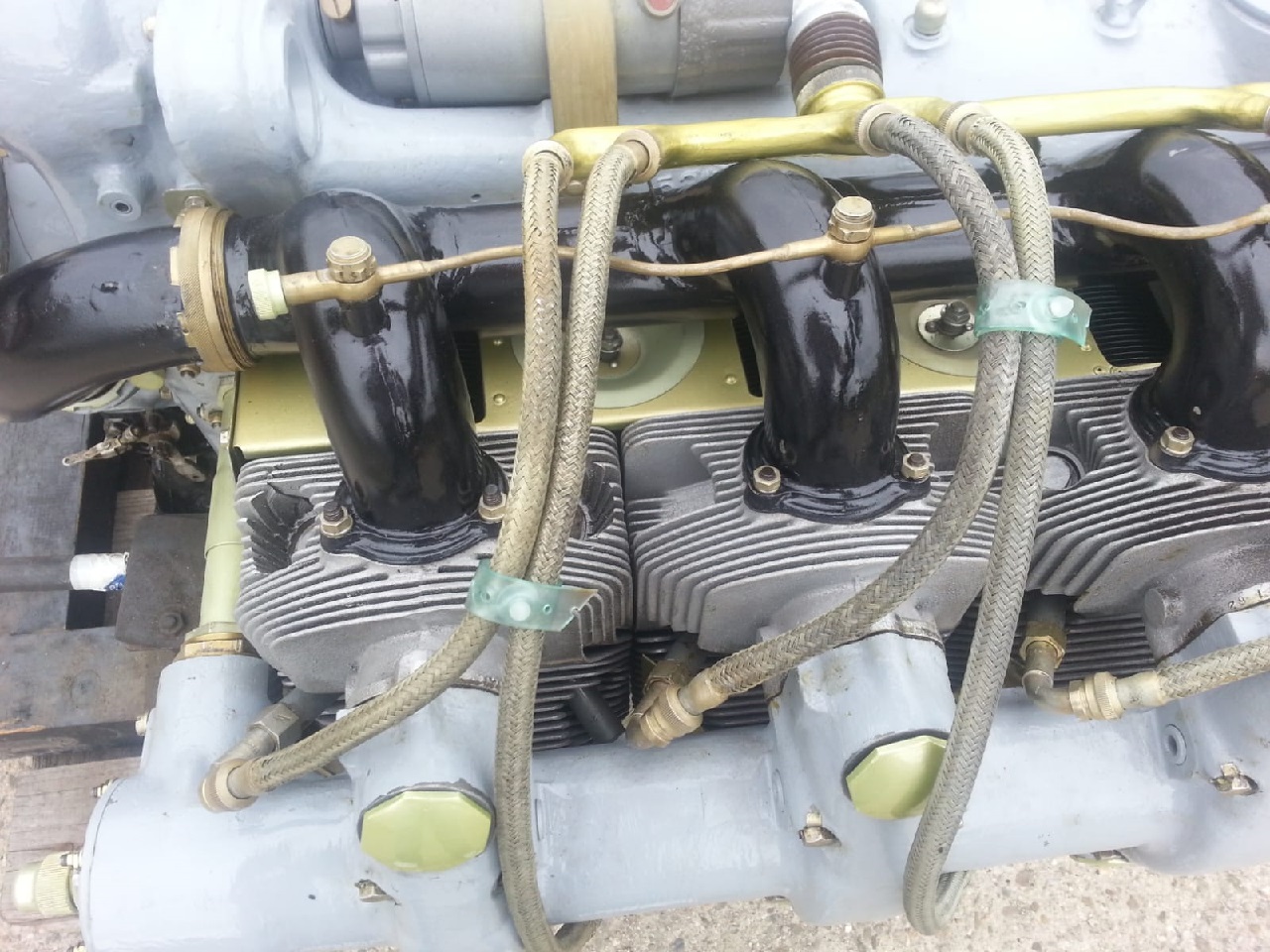

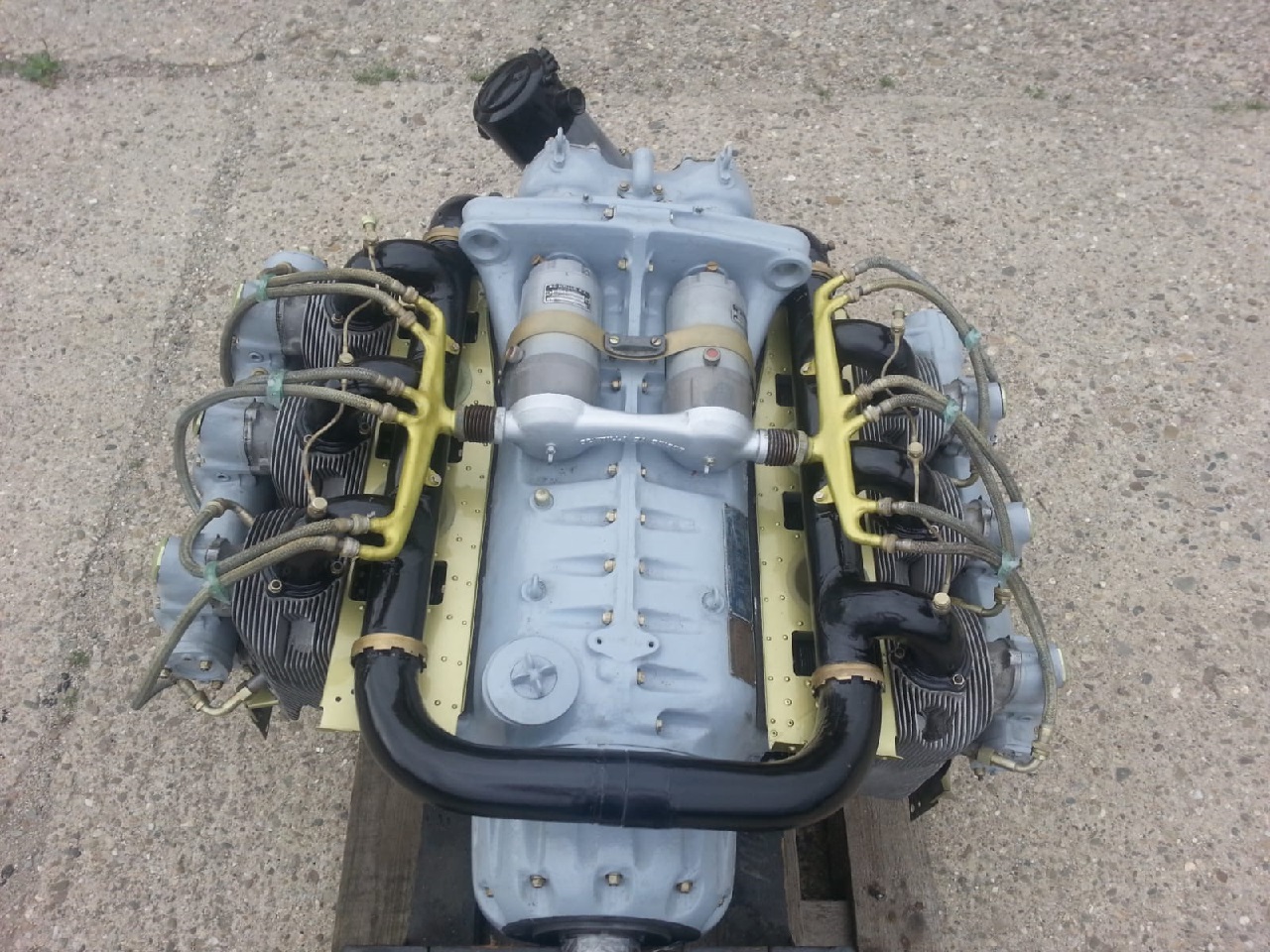

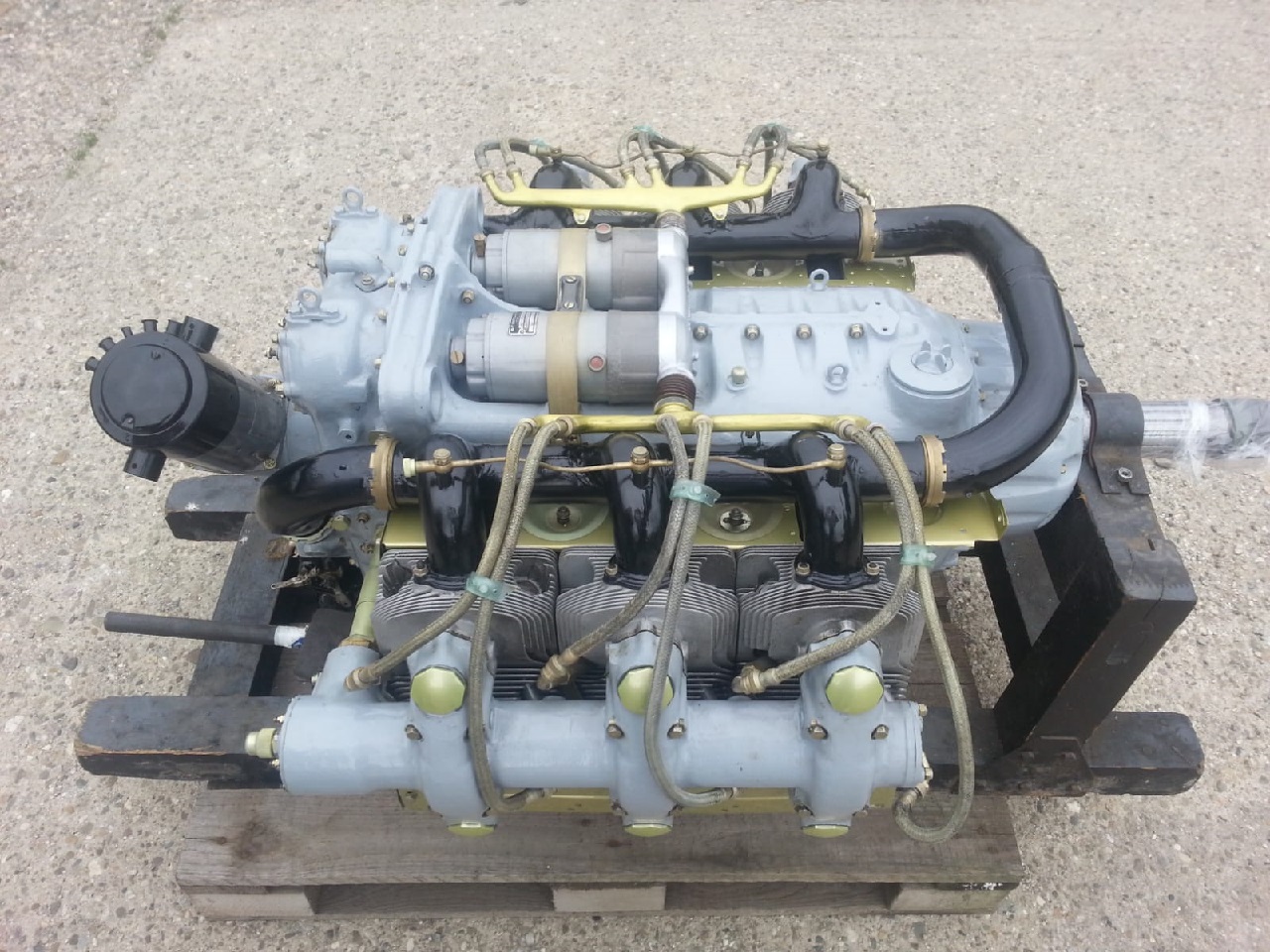

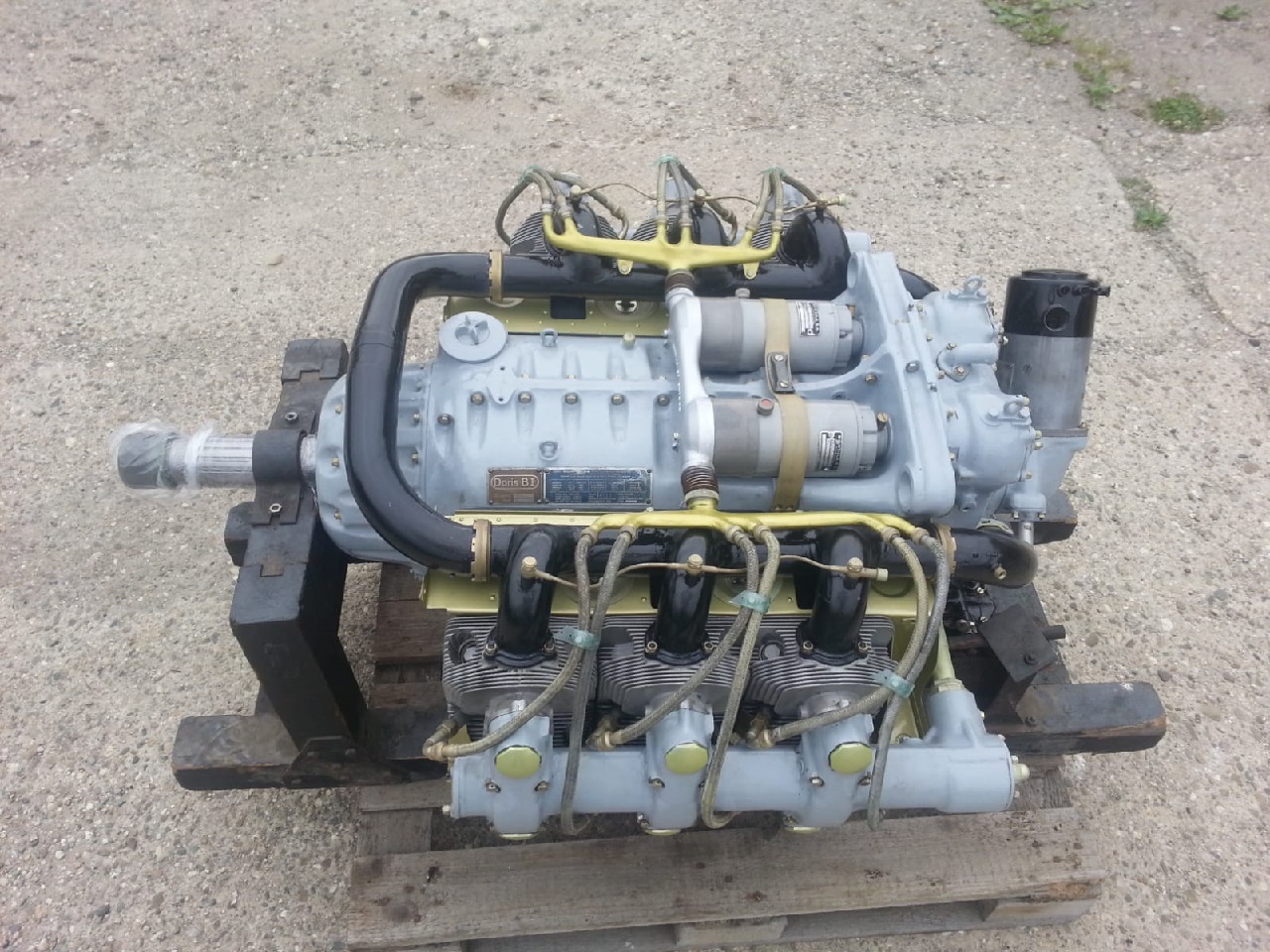

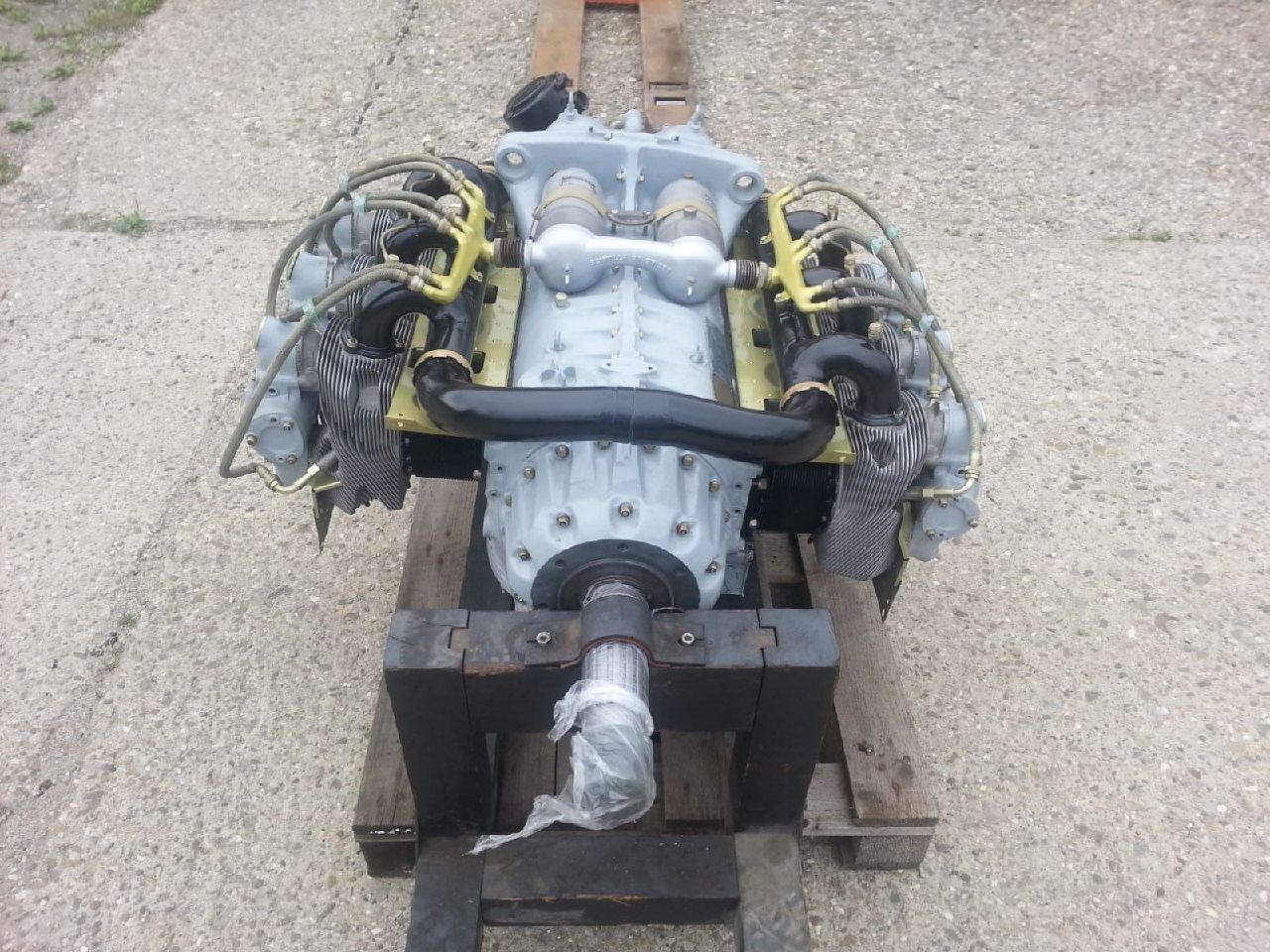

SPARE ENGINE

Possibility to buy a replacement engine
Price: xxxxxxxxxx
